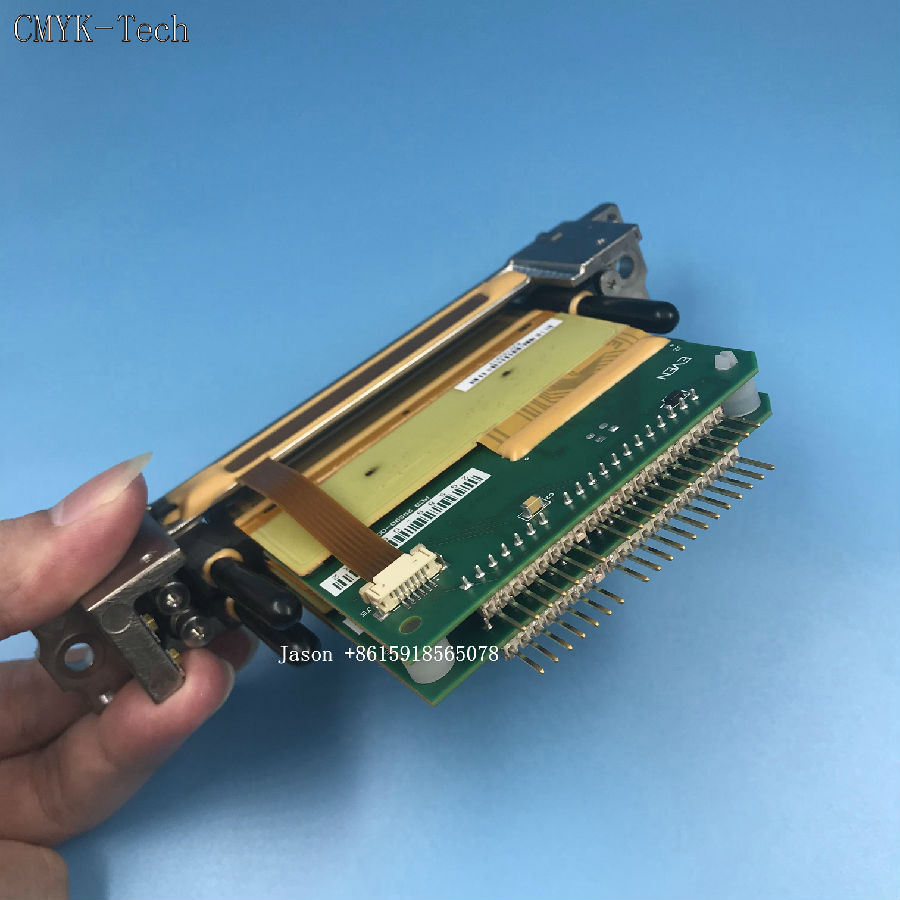

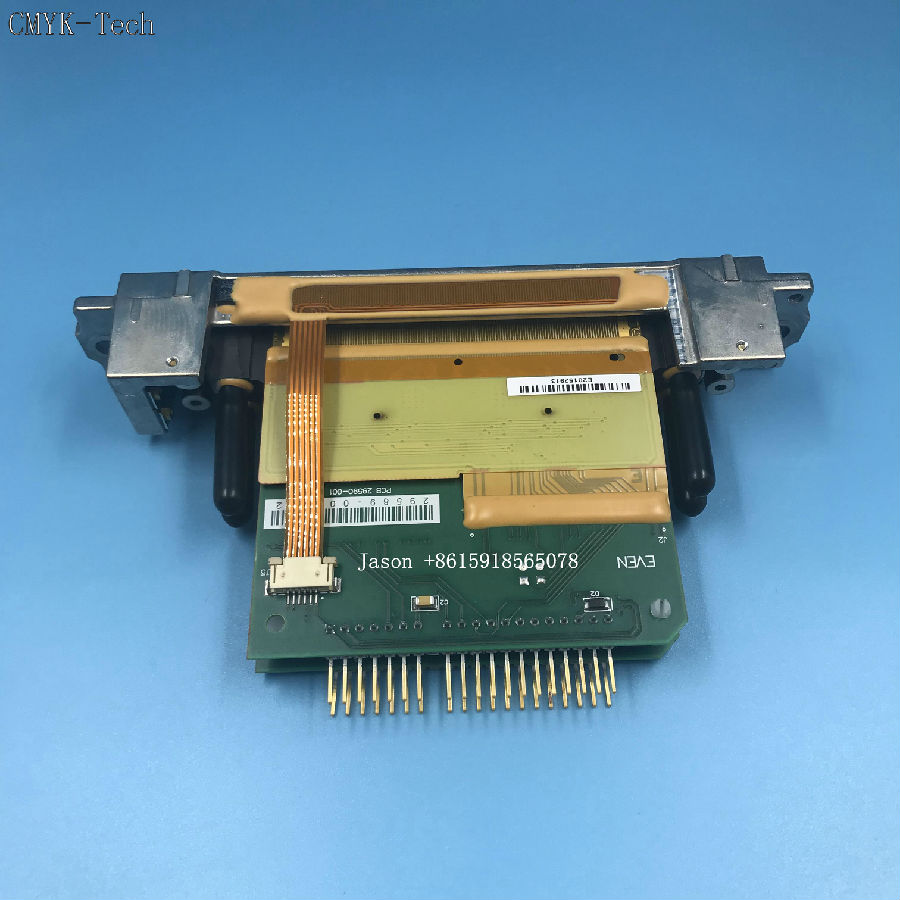

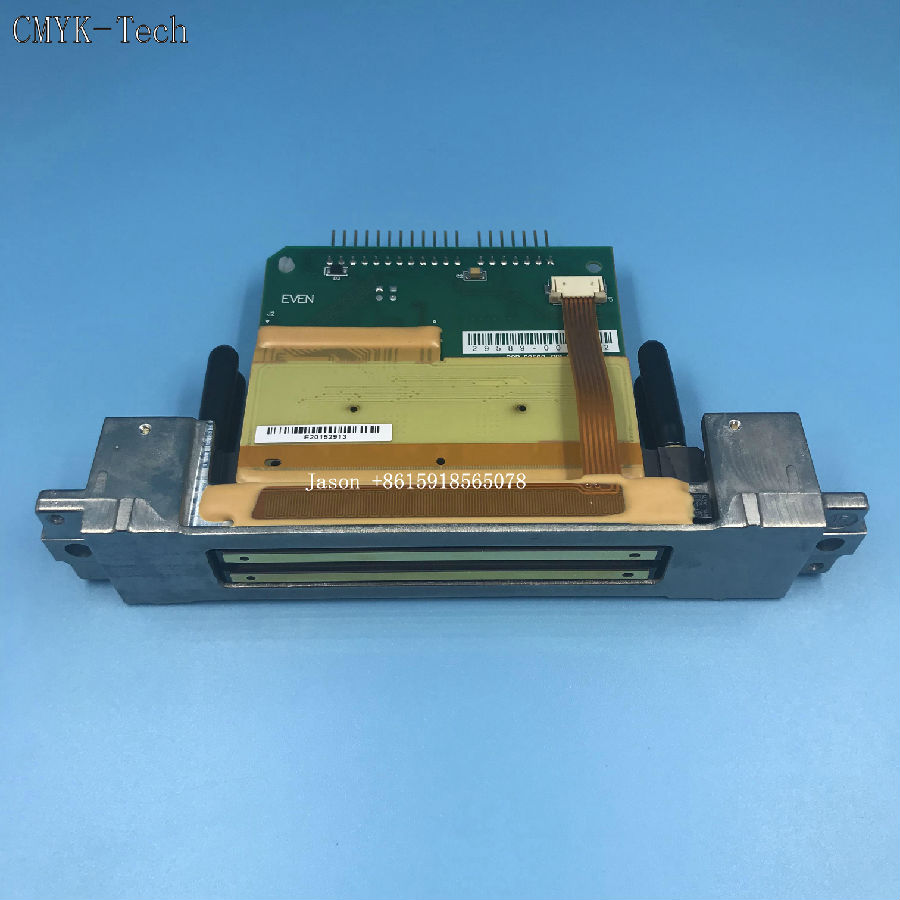

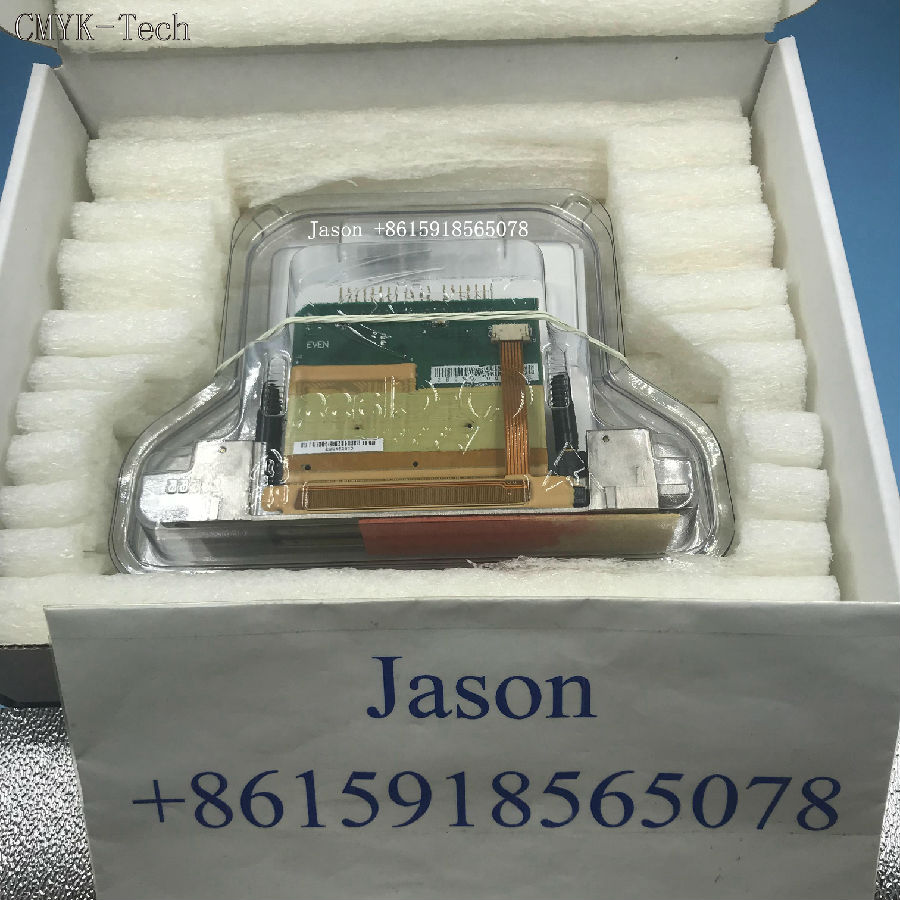

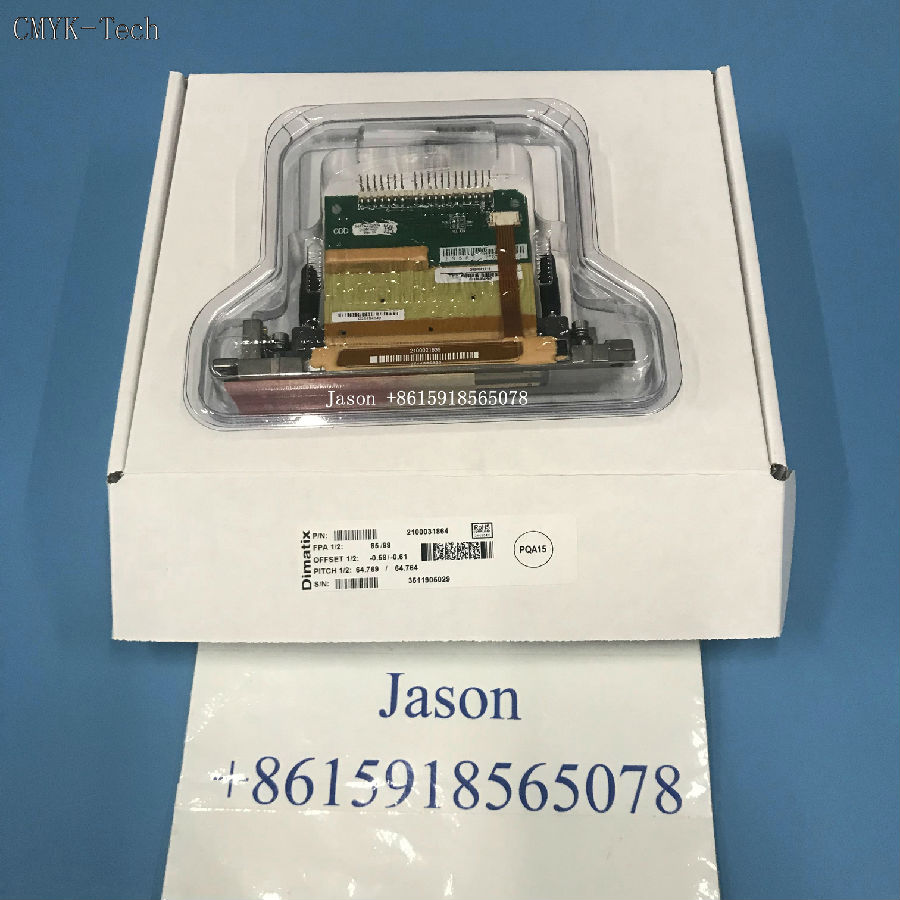

Spectra Polaris PQ-512 15pl Printhead
To be used with: LIYU PS3204-S512, LIYU PS3208-S512; Rodin P9320-B (4H), Rodin P9320-B (8H); Flora PP2512UV, SMART UV PRINTER; JHF UV R5000, JHF UV R3300, JHF UV R5000S, JHF UV R3300S; LEOPARD E3000, LEOPARD S2600, Anhui Liyu Innova PS, Infiniti Fina 250Q / Fina 320Q, Eurotech Aslan / Leo / Lion, Gongzheng GZCK 3212 AK, Flora LJ 320P, Rodin P9320-B, Sun Neo UV-LED Flatbed, Teckwin TeckUV 3200SR / TeckStorm TS600 / TeckStorm TS300, CET Color X-Press X500 / X-Press X500h / X-Press X1000 / X-Press X1000hl, Truepress Jet W3200UV, Wit-Color Ultra 4000-3304 / Ultra 4000-330
WhatsApp: +8615918565078
| Model | Spectra Polaris PQ-512 15pl |
| Number of addressable jets | 512 |
| Print width | 64.897 mm (2.555 inches) |
| Single color (4 rows of jets) | 127 microns [0.005 in.] (200 dpi) |
| Two color (2 rows of jets/per color) | 254 microns [0.010 in.] (100 dpi) |
| Jet straightness, 1 sigma* | 2.0 mrad [0.11°] |
| Nominal drop velocity | 8 m/s |
| Calibrated drop mass | 15ng |
| Compatible jetting fluids | UV-curable, organic solvents, aqueous |
| Adjustment for drop size | 15 - 30 picoliters |
| Drop Size 15 pl | Maximum Frequency 40 kHz |
| Drop Size 30 pl | Maximum Frequency 25 kHz |
| Operating temperature range | up to 60° C |
| Fluid viscosity at jetting | 8 to 20 centipoise |
| Dry weight | 160 grams |
